SPECIALTY FOLDER GLUER – PIONEERING SERVO-FOLDING TECHNOLOGY

Specialty boxes are the most common packaging solutions for trade and industry. Almost everywhere do these boxes meet the demand for transport, product safety and sustainability. From simple boxes, up to complex POP (point of purchase) designs – one cannot imagine life without them anymore. To economically and efficiently produce these designs is the job of BAHMÜLLER specialty folder gluers.

Various layouts of boxes, multi-piece packaging, or complex geometric displays, can be produced at outstanding production Levels.

Not every converter requires a High-End machine, or require an additional machine for conventional box orders. Under these conditions BAHMÜLLER offers the JETBOX. The machine in its standard configuration and can be equipped with add-on components as part of a modular concept as business requires it. The modular TURBOX concept provides an opportunity for the user to equip the machine to match business requirements therefore future-proving your investment.

UNIQUE FOLD, a servo-driven rotational folding system developed by BAHMÜLLER brings to an end the reign of the conventional folding hook which has been a limiting factor in machine performance for decades. The unique front-fold system, combined with the servo back-fold system reduces the gap between boxes to a bare minimum significantly boosting output performance. ZERO DEFECT during the production is the mantra for the industry. BAHMÜLLER’s UNIQUE EJECT operates in combination with your glue monitoring and code reading system. UNIQUE EJECT will eject out of specification boxes up to 1000 mm (40”) in width at full production speed. Additional modules, like the popular multi-piece feeder TOPMATCHER, the turning station UNIQUE TURN, and the POWERPACKER round off BAHMÜLLER’s specialty folder gluer program.

The Boxflow®Control system is the interface between man and machine. Various touch-screen displays and a remote control allow operation of the machine from any position. Basic blank dimensions for various box styles and even specialties can be entered directly on the touch-screen display. Based on this data the optimal machine setup is calculated and the machine is automatically setup. All optimized settings can be stored to each order allowing perfectly reproducing each setup. The machine operator benefits from a wide variety of stored orders easing the workload and ensuring maximum productivity. The business benefits from consistent product quality, minimized setup times and reduced manufacturing costs.

Optionally, all production and machine data can be downloaded onto your specific ERP/MRP system. Part of the machine control system is an integrated diagnostic system. It captures and processes all service and maintenance related data. To ensure maximum machine availability, the machine can be equipped with the BAHMÜLLER Online Service diagnostic system BOS. It enables our service team to remotely provide service assistance when necessary.

Jetbox

A BAHMÜLLER machine for each converter and for each budget. The JETBOX is the perfect solution for an entry-level machine or can provide production relieve for other specialty folder gluers. The JETBOX has been developed based on, and shares major components with the successful TURBOX with BOXFLOW®CONTROL.

Learn more about JETBOX

Blank sizes mm (inches)
JETBOX 1700 min. 355 (14) x 120 (4 ¾”) max. 1700 (67”) x 1500 (59”)
JETBOX 2300 min. 395 (15 ½”) x 130 (5”) max. 2300 (93”) x 1500 (59”)

Production Spectrum
Crash-lock boxes, crash-lock with partition, RSCs, boxes with dividers, 4-corner, 4-corner with lid, 6-corner in and outfold, and many more.

Material
Solid board 250 - 1500 g/sqm (51 – 306 lbs/msf)
Flutes: A, B, C, E, F, G, EE, EB, BC

Turbox

For more than 10 years the TURBOX line of specialty folder gluers has been firmly established in the market. Today it is delivered in its third generation. The TURBOX is a modern, future-oriented machine convincing with short setup times, high out-put performance, and a high-level of flexibility as part of its modular construction. You benefit from consistent quality and process security.

Learn more about TURBOX

Blank sizes mm (inches)
TURBOX 1700/1450 min. 355 (14”) x 120 (4 ¾”) max. 1700 (67”) x 1500 (59”)
TURBOX 1700 min. 395 (15 ½”) x 130 (5”) max. 1700 (67”) x 1500 (59”)
TURBOX 2300 min. 455 (18”) x 150 (6”) max. 2300 (93”) x 1500 (59”)

Production spectrum
Crash-lock boxes, crash-lock with partition, RSCs, boxes with dividers, 4-corner, 4-corner with lid, 6-corner in and outfold, and many more

Material
Solid board 250 - 1500 g/sqm, (51 – 306 lbs/msf)
Flutes: A, B, C, E, F, G, EE, EB, BC

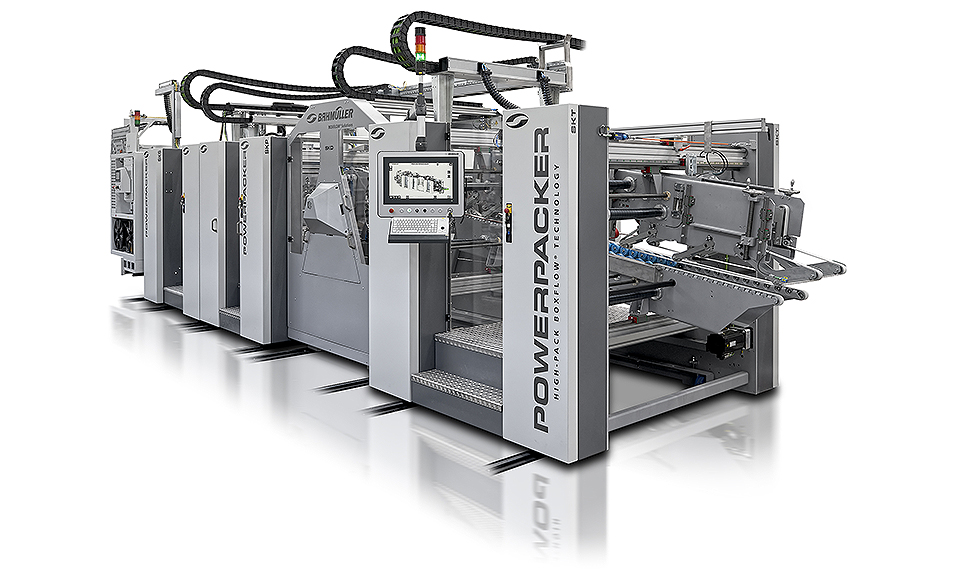

Powerpacker

The BAHMÜLLER POWERPACKER is an intelligent solution for complex sorting and bundling of box bundles. The machine has been awarded the FEFCO Innovation Bronze Medal. The POWERPACKES is based on a modular construction principle is highly flexible and maximizes the overall output performance of your specialty folder gluer line.

Learn more about POWERPACKER

Blank sizes mm (inches)
Lenght: min. 200 (8”) max. 1000 (39 1/3”)
Width: min. 300 (12”) max. 1200 47 ¼”)

Production spectrum
Crash-lock boxes, crash-lock with partition, RSCs, boxes with dividers, 4-corner, 4-corner with lid, 6-corner in and outfold, and many more

Material
Flutes: A, B, C, E, F, G, EE, EB, BC

TOPMATCHER

BAHMÜLLER specialty folder gluers can be equipped with the outstanding multi-piece feeder, TOPMATCHER, which received the FEFCO Innovation reward. Take advantage of running Shelf-Ready Packaging as well as specialties designed for fiber optimization and fully recyclable materials.

Learn more about TOPMATCHER

Blank sizes mm (inches)
max. 1500 (59'') x 2300 (93'')

Production Spectrum
Crash-lock boxes, crash-lock with partition, RSCs, boxes with dividers, 4-corner, 4-corner with lid, 6-corner in and outfold, and many more

Material
Solid board from 450 g/sqm, (92 lbs/msf)
Flutes: A, B, C, E, F, G, EE, EB, BC

Unique Turn

The module UNIQUE TURN is designed to produce packaging requiring silicon application along with a tear tape applicator allowing a single process work-flow. The product is precision-guided and delivered completely clean.

Learn more about UNIQUE TURN

Blank sizes mm (inches)
Length 800 (31 ½”) – 1800 (71”) (will be blank width)
Diagonal max. 2130 (84”)

Production Spectrum
Crash-lock boxes, crash-lock with partition, RSCs, boxes with dividers, 4-corner, 4-corner with lid, 6-corner in and outfold, and many more

Material
Flutes: A, B, C, E, F, G, EE, EB, BC
